12mm 2 pin waterproof Flat metal push button Latching pushbutton

Share to:

12mm 2 pin waterproof Flat metal push button Latching pushbutton

Reach IP65 protection level
Service life up to 1,000,000 life cycles (instant)

Availability:

Quantity:



Inquire Add to Basket

Model:
TH12B-G10Z
Brand:
TNHA

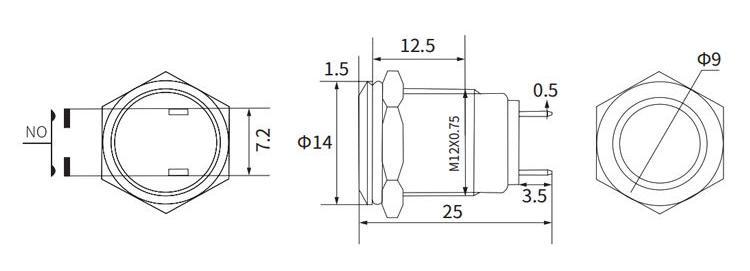

★Parameter (Specification)

Switch Rating	1A /DC 36V
Protection Class	IP65(can be custom IP67),IK09
Mounting hole	12mm
Mounting hole	(or 6mm,8mm,16mm,19mm,25mm,30mm)
Electrical life	200000
Mechanical life	1000000
Contact structure	1NO
The Front Shape	Hight flat round
Terminal Type	Pin terminal or Screw terminal
Crust material	Nickel-plated brass
Crust material	or stainless steel, Aluminum oxide titanium plating (optional)
Lamp voltage	3/5/6/12/24/36/48V AC110V AC220V
Lamp type	Dot or Ring illuminated,Power symbol,Custom text
Lamp color	Red,Green,blue,Orange,Yellow,Purple,White
Nut Torque	About 0.6Nm
Panel Thickness	1~6mm
Operation Force	About 3~5N
Operating Temperature	-20℃~+55℃
Operation Type	Latching

★Product Applications

Metal button switch series has more popular functions: it reaches IP65 protection level and has a service life of up to 1,000,000 life cycles (instant)


Automatic Equipment	Machine Tool Equipment

Access Control System	Elevator Control

Rail Traffic	Industrial Lighting

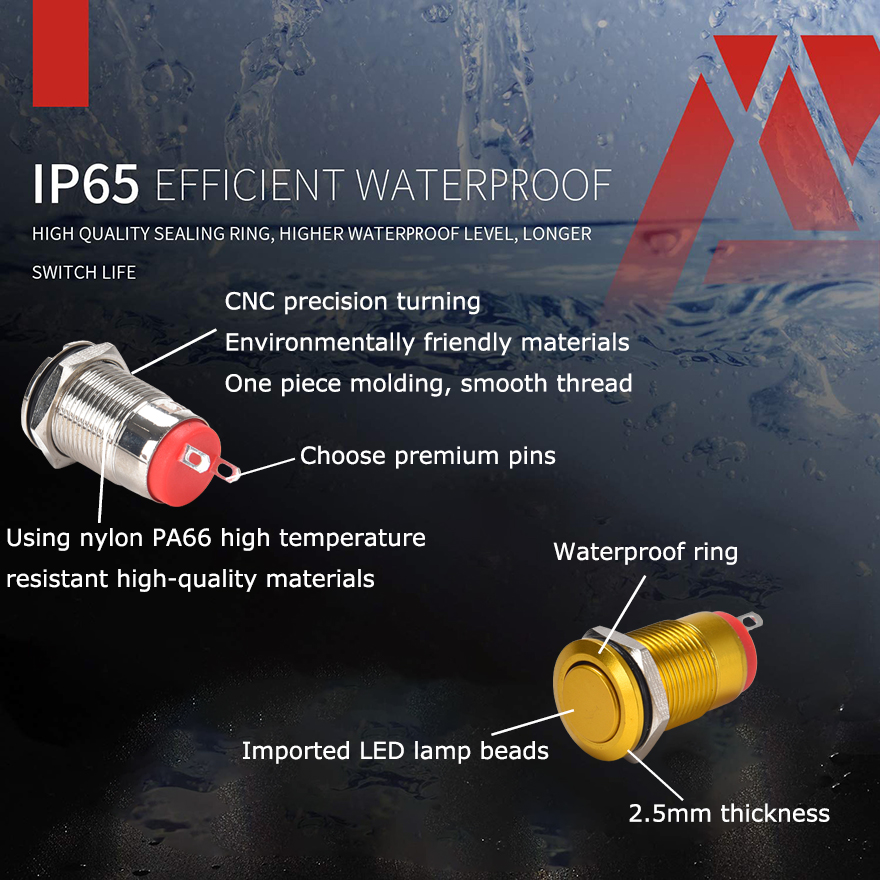

★Main Features
