IP65 22mm Good Quality Metal Push Button

Share to:

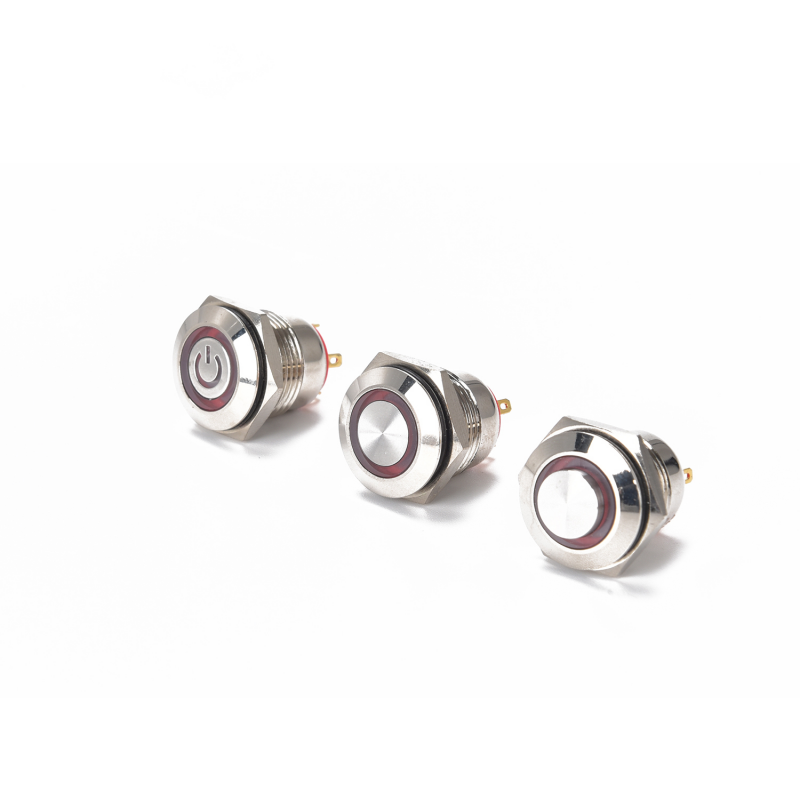

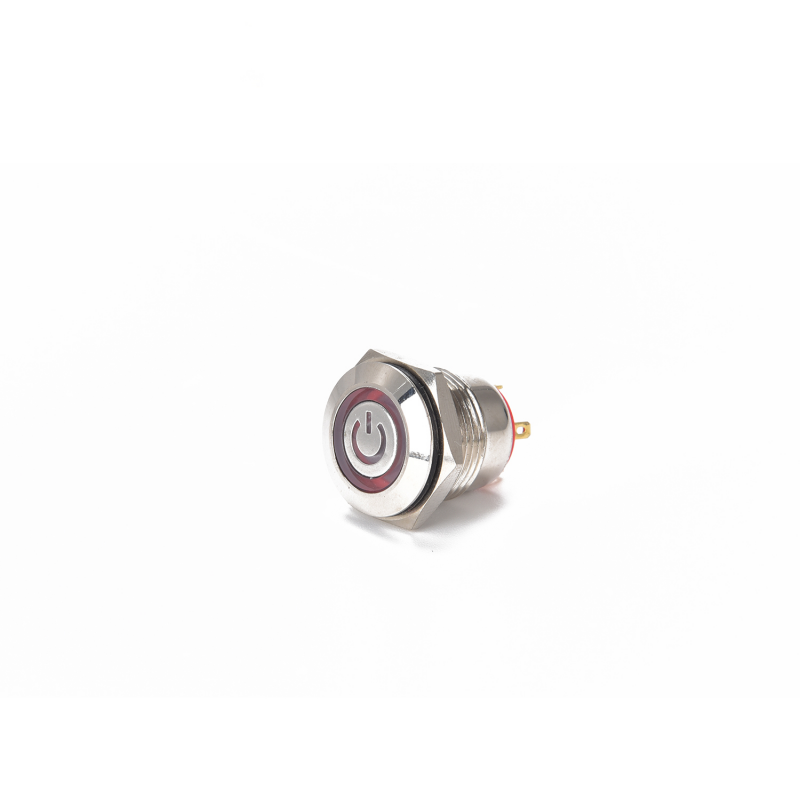

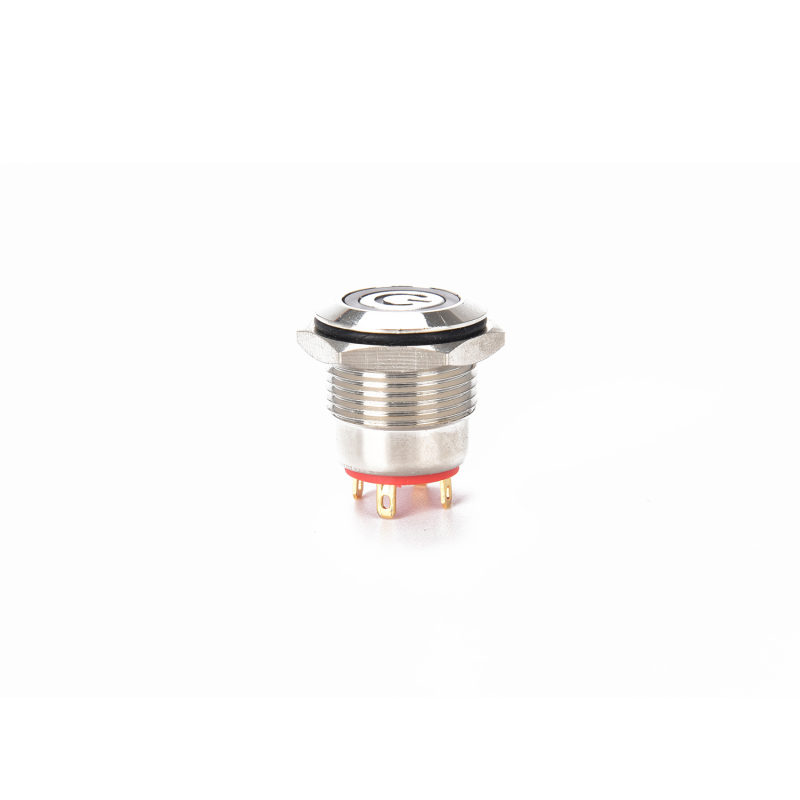

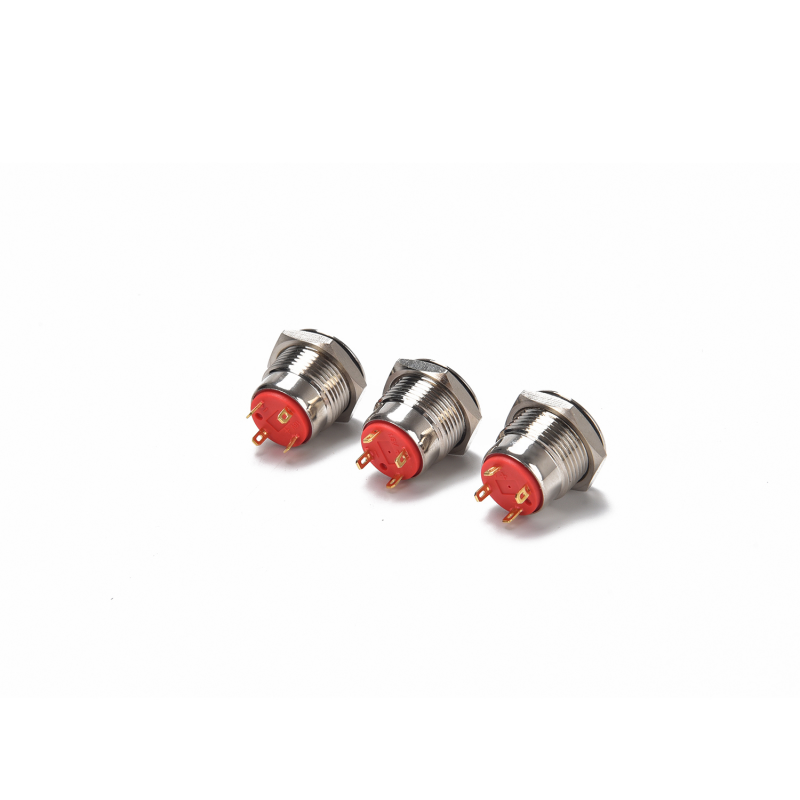

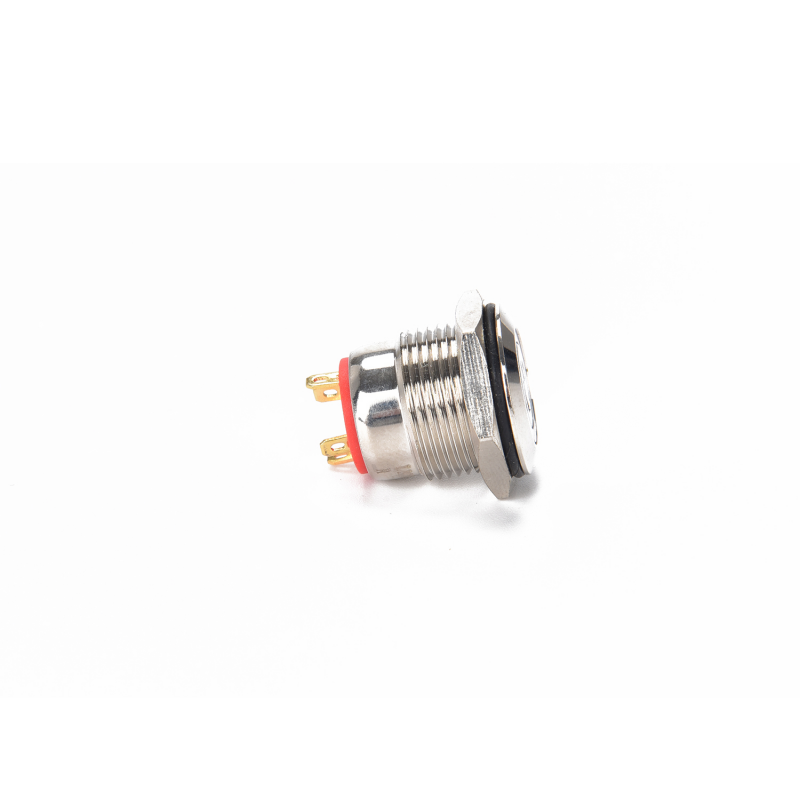

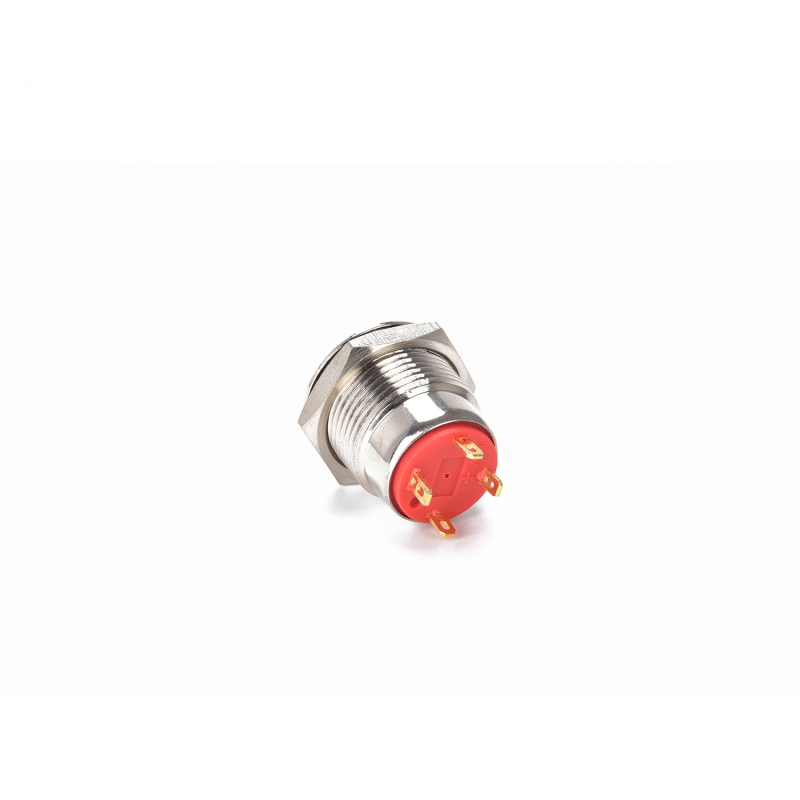

IP65 22mm Good Quality Metal Push Button

Reach IP65 protection level
Service life up to 1,000,000 life cycles (instant)

Availability:

Quantity:



Inquire Add to Basket

Model:
TH16
Brand:
TNHA

★Parameter (Specification)

Switch Rating	2A /DC 36V
Protection Class	IP65(can be custom IP67),IK09
Mounting hole	16mm
Mounting hole	6mm,8mm,12mm,19mm,22mm,25mm,30mm
Electrical life	200000
Mechanical life	1000000
Contact structure	1NO 1NC
Terminal Type	Pin terminal or Screw terminal
Crust material	Nickel-plated brass
Crust material	or stainless steel, Aluminum oxide titanium plating (optional)
Lamp voltage	3/5/6/12/24/36/48V AC110V AC220V
Lamp color	Red,Green,blue,Orange,Yellow,Purple,White
Nut Torque	About 0.6Nm
Panel Thickness	1~6mm
Operation Force	About 3~5N
Operating Temperature	-20℃~+55℃
Operation Type	Momentary/Latching

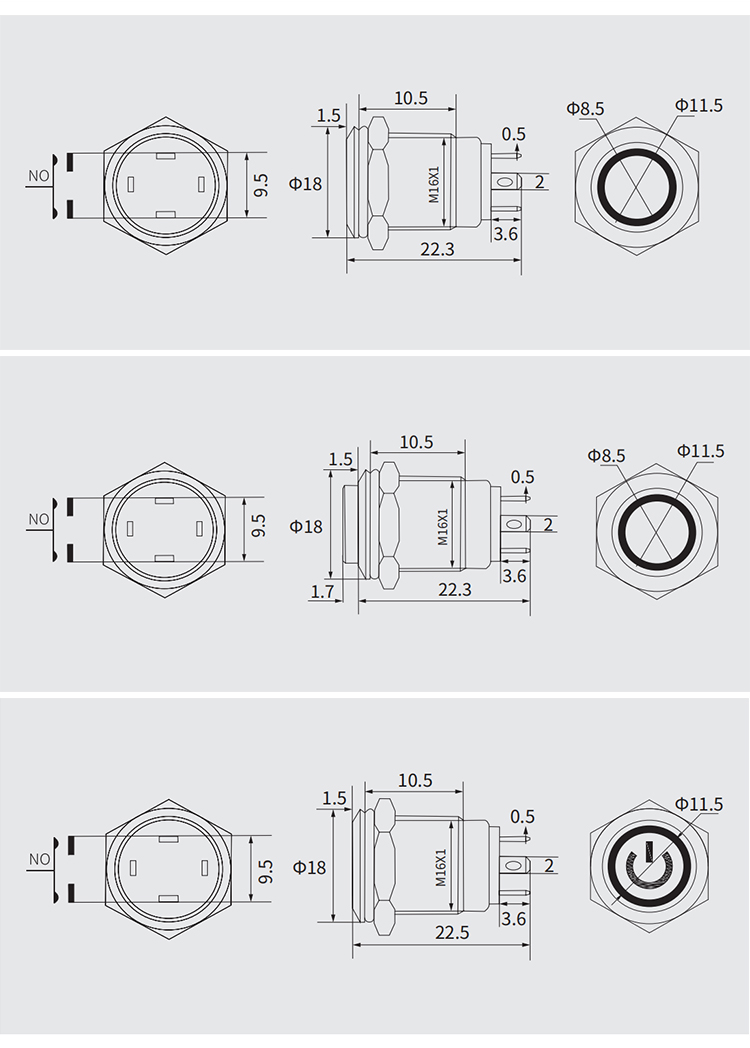

H3e8b1a4e3efb432dab8c4fe28c916bf1i

★Product Applications

Metal button switch series has more popular functions: it reaches IP65 protection level and has a service life of up to 1,000,000 life cycles (instant)


Automatic Equipment	Machine Tool Equipment

Access Control System	Elevator Control

Rail Traffic	Industrial Lighting
