TNHA High Accuracy Long Handle Type CM1701 Waterproof Micro Switch

Share to:

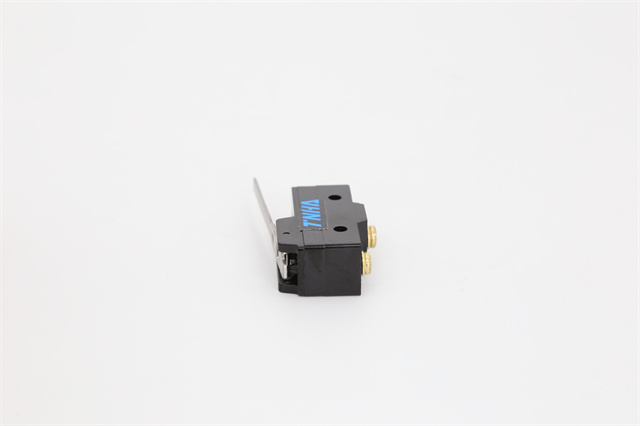

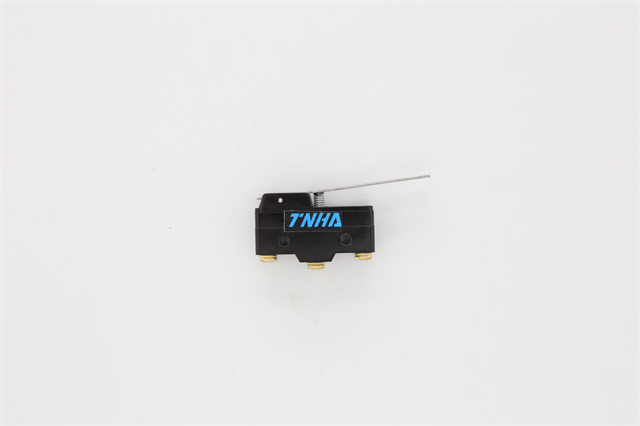

TNHA High Accuracy Long Handle Type CM1701 Waterproof Micro Switch

Various actuators, the operation position is adjustable.
Outer shell covered with intensive plastic, water-proof and oil-proof.
The mechanical strength is better than the CM type of micro switch, bear hitting.

Availability:

Quantity:



Inquire Add to Basket

Model:
CM-1701
Brand:
TNHA

★Parameter (Specification)

Operation speed	0.01mm-1m/sec
Operating frequency	Mechanical:240 operations/min. Electical: 20 operations/min.
Contact resistance	15mmΩmax. (initial value)
Insulation resistance	100mmΩmin. (at 500VDC)
Dielectric strength	1000VAC, 50/60 Hz for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute betwveen current-carrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55Hz, 1.5mm double amplitude
Shock	Mechanical durable: 1000m/Sec² (about 100G'S)
Shock	Malfunction: 300m/Sec² (about 30G’S)
Life	Mechanical: 10,000,000 operations above
Life	Electrical: 500,000 operations/min
Weight	About22 to58g

★Product Applications

The micro switch series products have the characteristics of small contact gap, fast action, high sensitivity and small movement stroke.


Audio-video Equipment	Communication Equipment

Office Automation Equipment	Computers

★Main Features

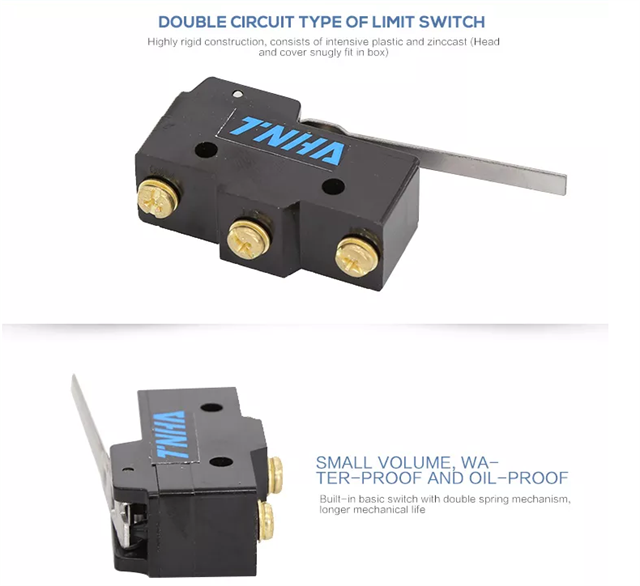

CM-1701 001

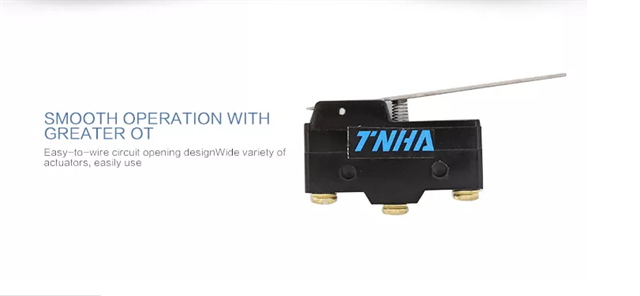

CM-1701 002

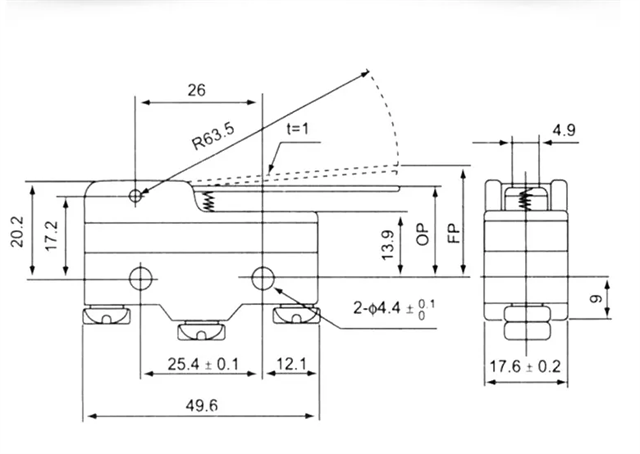

CM 1701 003
