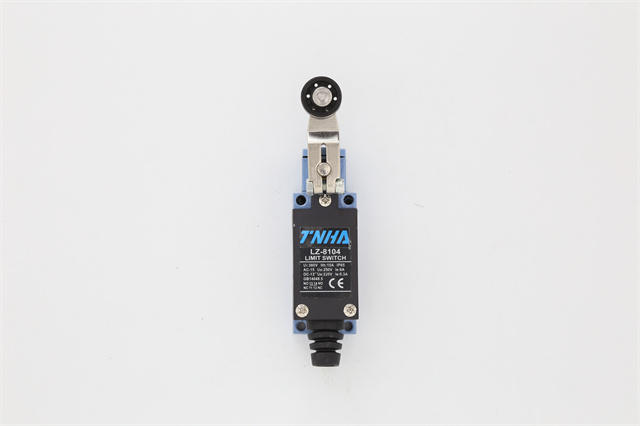

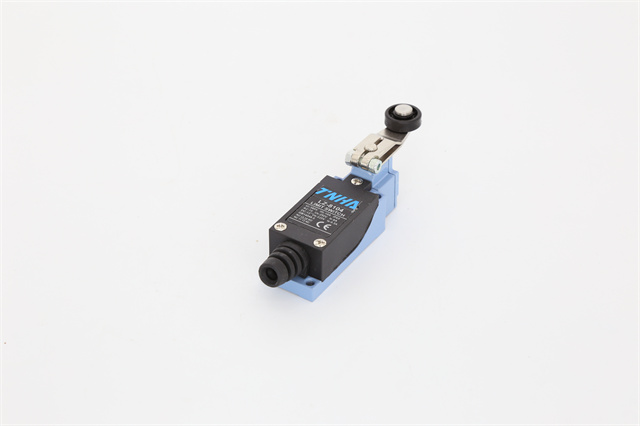

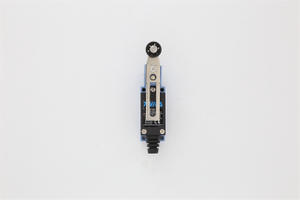

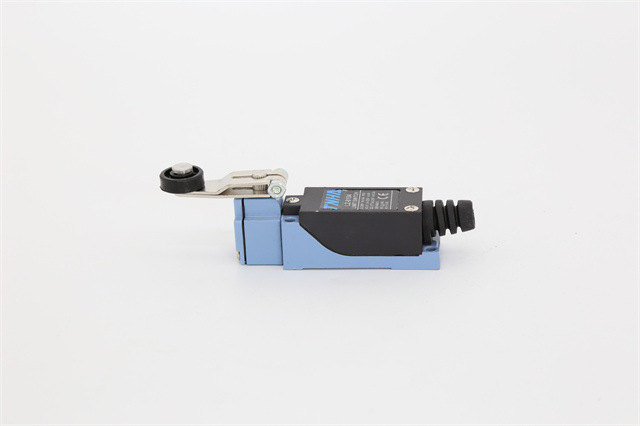

LZ-8104 Two Way Limit Switch

Availability:

Quantity:



Inquire Add to Basket

Model:
LZ-8104
Brand:
TNHA

★Parameter (Specification)

Operation speed	0. 5mm-50cm/sec
Operating frequency	Mechanical:120 operations/minute Electical; 30 operations/minute
Contact resistance	25mΩmax.(initial value)
Insulation resistance	100mΩmin. (below 500VDC)
Dielectric strength	1000VAC,50/60Hz for 1 minute between terminals of the same polarity
	1500VAC,50/60 Hz for 1 minute between current-carrying and non-current-carrying metal parts
	1500VAC. 50/60Hz for 1 minute between each terminal and ground
Vibration	10-55HZ, 1. 5mm double amplitude
Shock	Mechanical durable:1,000m/Sec²(about 100G'S)
Shock	Malfunction:m/Sec²(about 30G'S)
Life	Mechanical: 10,000,000 operations above
Life	Electrical:5,000,000 operations above
Weight	About 130 to 190g
Degree of protection	IP65

★Product Applications


Machine Tool	Industrial Lifting

Video Cassette Recorder	Elevator

★Main Features

LOGO_03

ZHEJIANG TNHA ELECTRICAL CO., LTD.

is a professional manufacturer that has focused on Crane Push button switch, Industrial wireless remote control, Elevator control station and Limit switch over 20 years. TNHA have professional effective team and technical team, Strong independent R & D capability serve client's by heart .We also have all kinds of customized products with professional and exquisite.We also have ISO9001 Management system certification and CCC,CE,TUV ,UL.

IMG_0096(1)

20,000	25	200+	80M
Factory Size(㎡)	Production Lines	Workshop Employees	Annual Output Value

Advantages

—————#—————

Premiumn Products

1. Establish standardized supplier evaluation and quality control system;
2. Professional SQE;
3. Strict enforcement of ISO9001 quality standards, all products have been included into to quality traceable system;

4. Intergrate industrial talents with technological resources, develop and innovate with customers and suppliers, keep improving product quality.

Full of Range

Over 2000 molds available for production and imported advanced equipment including CNC laser cutting machine, automatic shearing machine, injection molding machine....Based on growing trend of after-market and products, we will continue optimizing product information and structure, also developing new marketable products.

Resonable Price

1. Cost control in all processes from procurement to logistics delivery;

2. Integrate orders and centralized procurement to provide the most reasonable price.

Professional Service

1. Customer-oriented, resource integration, offer one-stop product customization service;

2. Focus on the global market, multi-dimensional market research and analysis, offer global market information for our customers;

3. Offer overall design scheme of brand packaging;

4. Focus on industry development for 20 years, armed with an effective internal collaboration team, carry out professional systematic training regularly, hence to provide comprehensive professional service!

SALES and MACHINES

—————#—————

TNHA has the professional effective team and Technical team, Strong independent R&D capability serves clients by heart. We also have all kinds of customized products with professional and exquisite. Over 2000 molds available for production and imported advanced equipment including CNC laser cutting machine, automatic shearing machine, injection molding machine etc..
